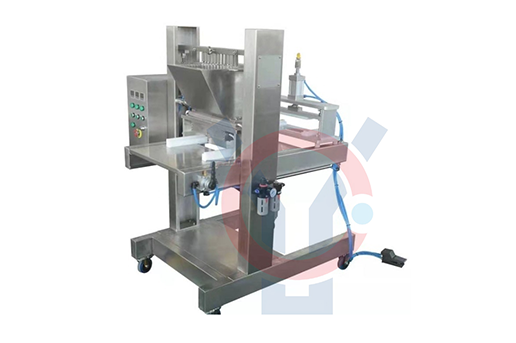

SJZ50A Candy Depositor and De-molding Machine
● This machine is a mini depositor to produce different kinds of candies by change molds;
● Not only for gummy candy but also can fill hard candies, lollipop, toffee even mellos;
● Diversified customization (shape, color, filling, driver type);
● Folding plate;
● With de-molding device;
● Can be used in laboratories or semi-automatic production lines.
01
Model |
SJZ50A |
Production capacity |
10-30 kg/hour |
Max candy weight |
2-8 g/or customized |
Candy type |
Single color or Double color |
-

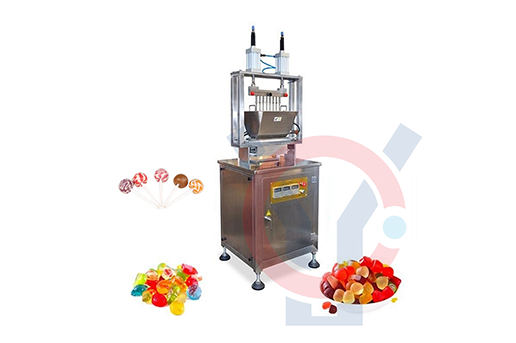

SJZ20 Stepping Gummy Depositing Machine
This machine is foot operated and requires manual de-molding. It can be used in small output semi-automatic candy production lines or laboratories.
● Motor power: 5.5 KW
● Depositing Speed: Up to 30-40 Drops / Minute
● Worker put mould into depositor, after machine finish depositing, worker carry it to cooling house or natural cooling
● Size: 800*800*1500mm
● Weight: 300kg
-

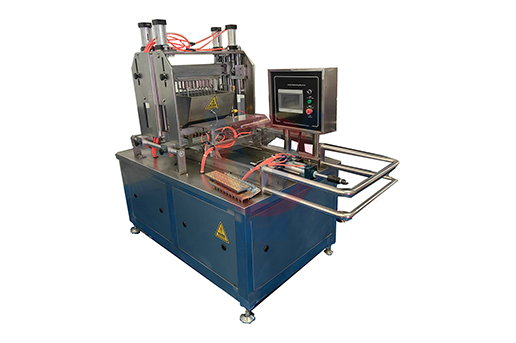

SJZ50B Cylinder-type Depositing Machine
This machine operates in a cylinder style. The capacity is about 20-50kg/h. It can be made into single colored candies. Manual take off the molds. The whole machine is made of stainless steel 304. Built in electric cabinet. Temperature setting. Double layer hopper, Two hopper design. Aviation plug connection. Oil spraying system. Sandblasting for whole machine.
03
Model |
SJZ50B |
Production capacity |
20-50 kg/hour |
Max candy weight |
2-6 g/or customized |
Depositing speed |
10-15n/min |
Power |
6.5kw |
Outer size |
1850*1950*850mm |
Weight |
350kg |
-

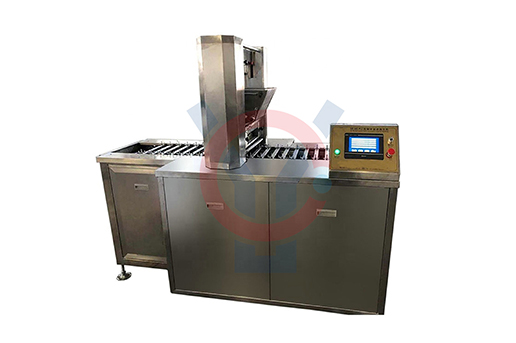

SJZ50C Semi-auto Candy Depositing Machine
This machine has PLC control system, manual placement of molds, hopper has heat preservation function. The de-molding system can be manual or machine operated.
It is an optional device to improve production efficiency. The device is suitable for semi-automatic production line. The machine is equipped with automatic induction device, you just need to place the mold on it and it will automatically remove the candy from the mold, it's more efficient and cleaner than manual labor.
Mode |
SJZ50C |
Capacity |
20~50kg/h |
Depositing speed |
5~20 n/min |
Working condition |
Temp:20-25 Humidity:55% |
Total power |
18KW/380V |
Size |
600*800*1600mm |
-

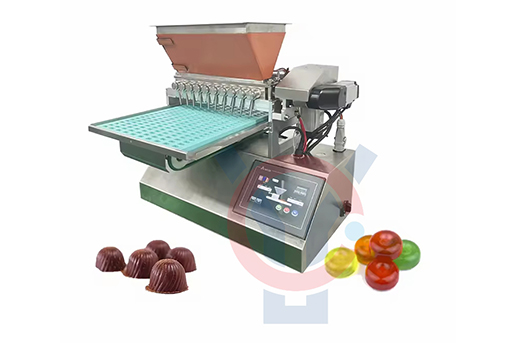

SJZ10 Table Depositing Machine
It is nicely priced table-top confectionery depositor which is suitable for chocolates, caramel, jelly and soft candy depositing. Designed for filling polycarbonate, silicone molds and chocolate shells with fluid ganache, nougat, couverture or liquor. Deposit one row at a time with a precise dose of ingredients.
The heated pistons and heated hopper with adjustable temperature control to successfully deposit both high and low heat ingredients. Cavity mould volume is adjustable and nozzles can be aligned to best accommodate different molds.
05
Product Name |
SJZ10 Table candy depositor |
Capacity |
20kg/h |
Speed |
15-20 times/min |
Depositing Weight |
3-10grams |
Power Input |
110-240V AC 50-60HZ |
Maximum Heat |
110°C |
Nozzles/Pistons |
10pcs |
Nozzles spacing |
35mm |
Machine size |
600*550*450mm |
Weight |
65kg |
Material |
304 stainless steel & food grade belt |
Application |
candy, chocolate |
